LED Display Module Pixel LED Panels Indoor LED Display Module (P1.25-P3)
LED modules are key components of LED screens, providing bright, high-quality visuals. They consist of multiple LEDs on a circuit board, offering energy-efficient, durable displays for various applications.
Colo led display offer same batch modules to our customers always. Tentech has all type of LED display screen's modules from P1.25 to P10.

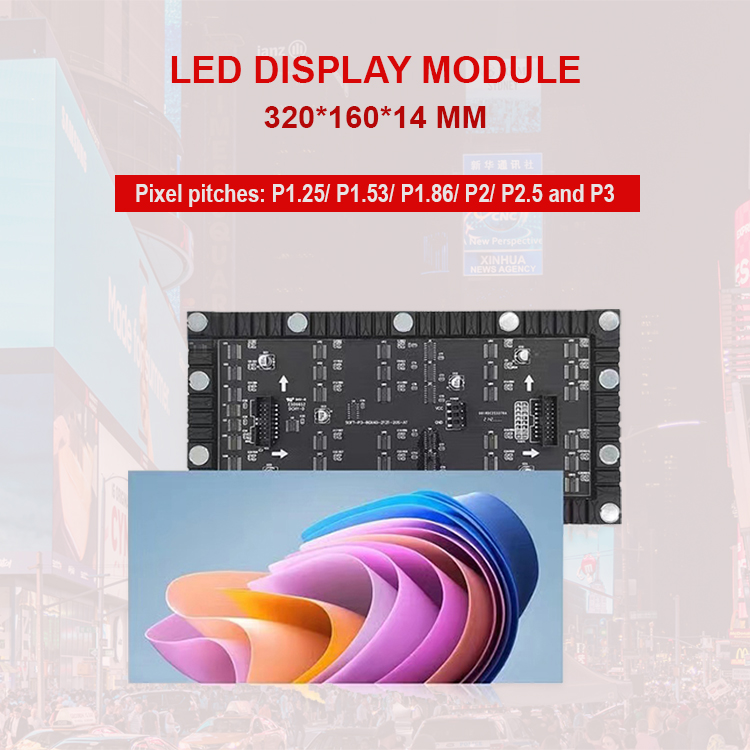

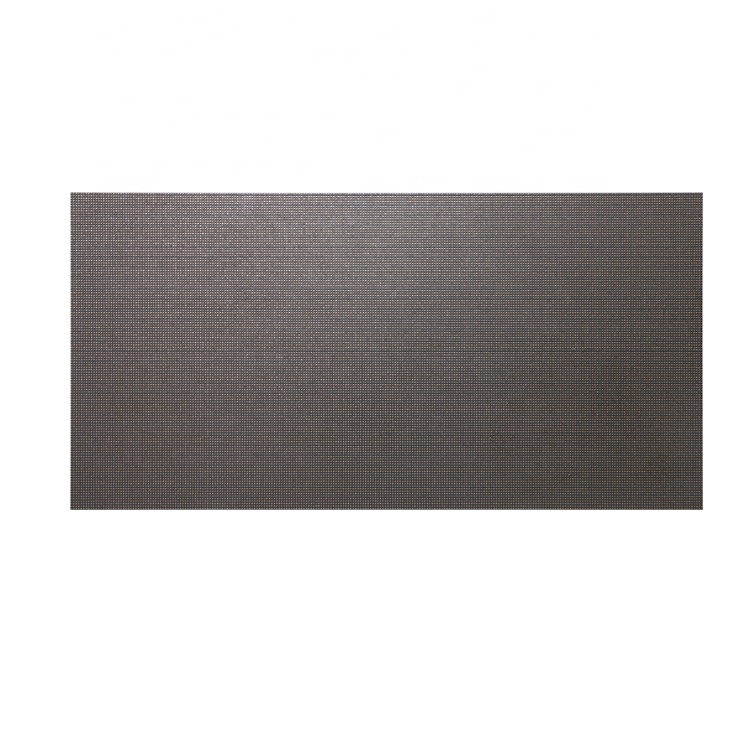

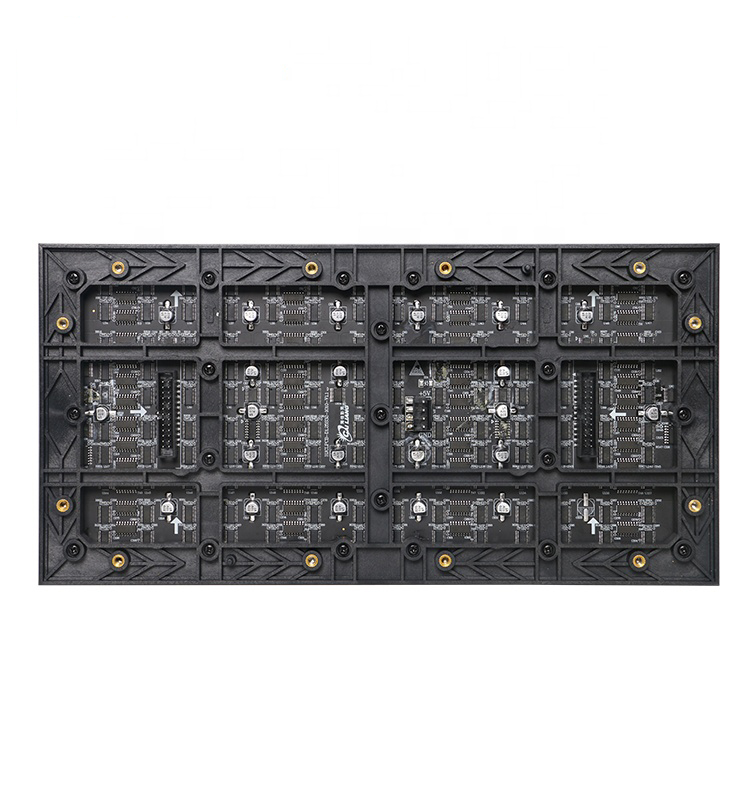

LED Display Module
An LED module is a crucial component of LED screens, consisting of multiple LEDs arranged on a circuit board. These modules provide the light source for the display and are responsible for delivering vibrant, high-quality images. LED modules are typically designed to be modular, allowing easy assembly and replacement, and come in various sizes, pixel pitches, and configurations. They are used in both indoor and outdoor LED screens, offering energy-efficient, bright, and durable visual solutions for advertising, entertainment, and information displays.
Technical Specification | ||
Pixel (mm) | 1.25 | 1.53 |
LED Configuration | SMD1010 | SMD1212 |
Module Resolution (W × H) | 256 * 128 | 208 * 104 |
Module Dimension (mm) | 320 (W) × 160 (H) × 14 | 320 (W) × 160 (H) × 14 |
Module weight (kg) | 0.6kg | 0.6 |
Max. Consumption Module (W) | ≦ 40 | ≦ 40 |
Pixel density (dots / m2) | 640000 dots/㎡ | 422500 dots/㎡ |
Brightness (nits) | 600-1000 CD/㎡ | 600-1000 CD/㎡ |
Viewing angle (H / V °) | 160°/140° | 160°/140° |
Brightness / Color Uniformity | ≥ 97% | ≥ 97% |
Energy Consumption | ≤450W/㎡ (Max ≤1000) | ≤450W/㎡ (Max ≤1000) |
Input Current | AC90 ~ 264V, 47-63Hz | AC90 ~ 264V, 47-63Hz |
Refresh Rate (Hz) | ≥ 3840Hz | ≥3840Hz |
Training mode (Scanning) | 64s | 52s |
Shades of grey | 16384 | 16384 |
Protection level | IP30 | IP30 |
Frame Changefrequency | 50Hz & 60Hz | 50Hz & 60Hz |
Color Processing Numbers | 12-16bit | 12-16bit |
Functions | 2K HD, 4K Ultra HD Videos | 2K HD, 4K Ultra HD Videos |
Lifetime (hours) | 100,000H | 100,000H |
Operting temperature | -10 to 50℃ | -10 to 50℃ |
Humidity (℃ / RH) | ±10-65% RH | ±10-65% RH |
Pay attention before buying LED module:
When you buying LED modules for an LED screen, you should primarily pay attention to the specifications such as pixel pitch, viewing distance, intended usage environment (Indoor or Outdoor), brightness level, color accurancy, refresh rate, and constant current control mode.
Key Factors:
◆ We suggest you to buy from same supplier who can meets your specific needs.
◆ Buy same batch led modules for the same LED Display Screen, because different batch specifications are different, such as brightness, color, refresh rate and others.
◆ If you buy large size of LED sreen, then buy enough LED modules of same batch as spare parts.
◆Pay attention on pixel pitch and other parameters.
Warranty Terms:
Tentech provides an excellent after-sales service on the prerequisite of customer satisfaction.
◆ All the products owners purchased from TENTECH possess the following rights:
◇ Unconditional replacement within 7 days.
◇ 2 Years warranty for maintenance.
◆ The repaired products will be sent back at Tentech cost to customer within 7 days ( from the date we receive the defective products at customers cost).
◆ 100% authentic strict assessment, for you to select high visibility, quality, good service goods; 10 times refund in case any face were found.
◆ 12 Hours after-sale service TENTECH professional services team promises to resolve any problems related to the use, installation and configuration of the product within 12 hours.
◆ 30 days price protection if the price of the products as what you purchased is getting lower within 30 days, TENTECH will refund the price difference.
