Transparent LED Displays and Screens for Wall, Film, Mesh, Net, and Glass

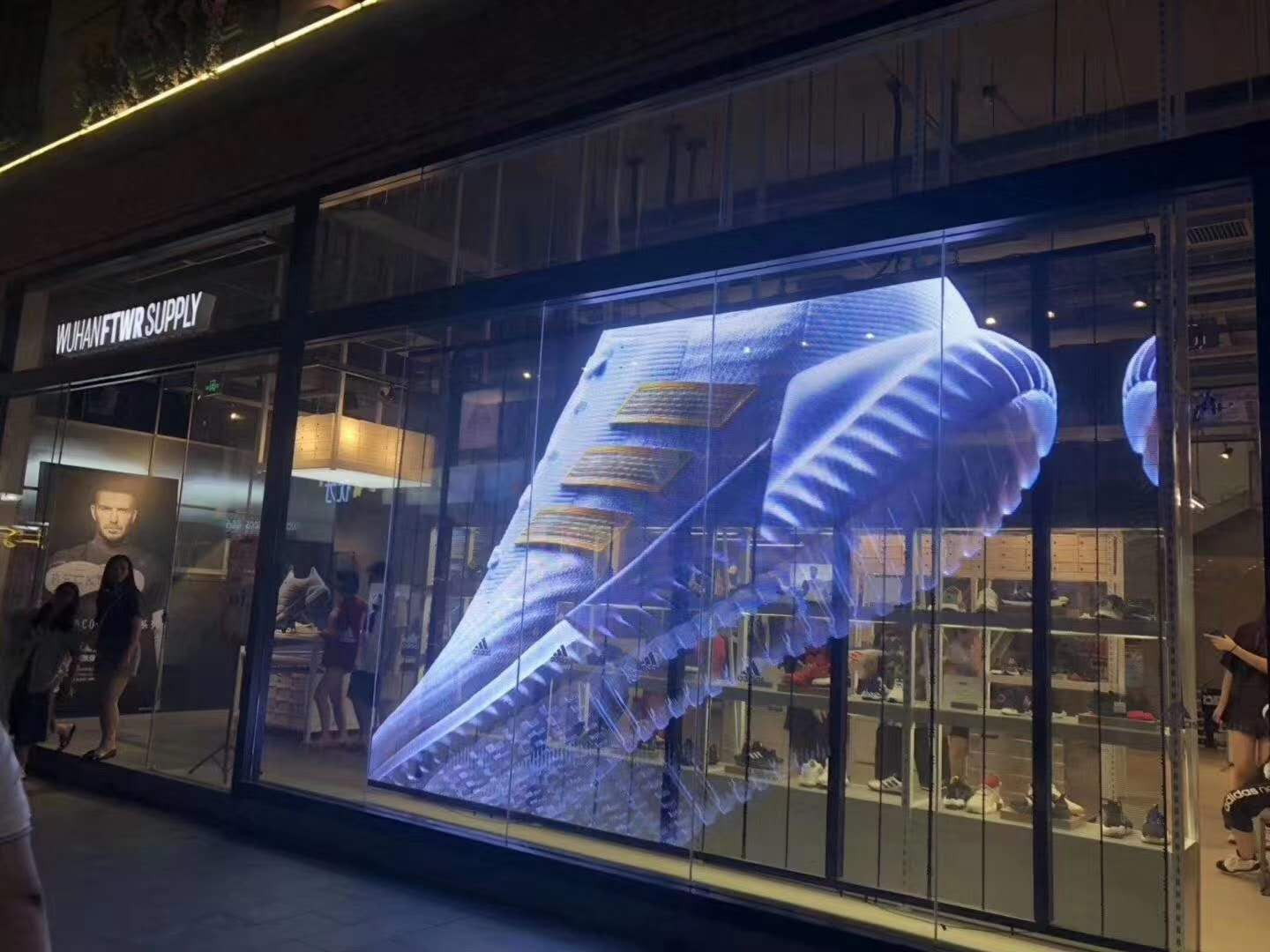

Colo LED Display specializes in transparent LED displays and screens designed for walls, films, mesh, nets, and glass surfaces. These innovative displays offer high transparency while delivering vibrant, high-resolution visuals, making them ideal for modern architecture and advertising. With versatile applications, they seamlessly integrate into storefronts, windows, and interior design.
Colo’s transparent LED solutions combine cutting-edge technology with energy efficiency, offering customizable options for diverse display needs.
Transparent LED Display
Advantage of our product:
◆High transparency rate up to 80% transparent, both people inside and outside could have a clear view.
◆Ultra thin design and light weight 80mm thickness and 14KG/SQM weight could save the installation space.

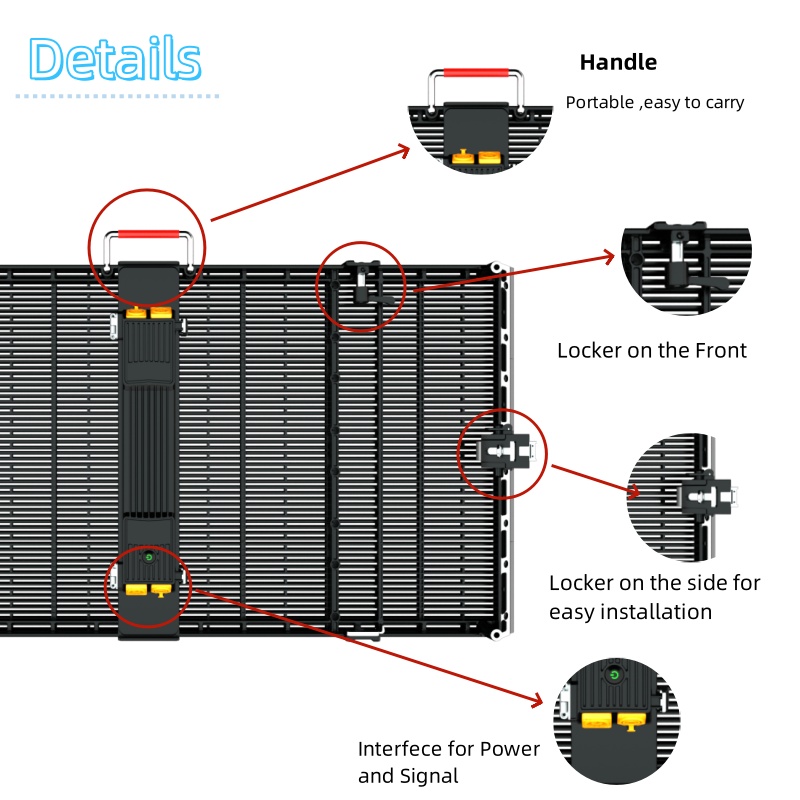

◆Fast installation and easy maintenance, cause don't need any steel structure to install. Front maintenance save times and installation costs.
◆Good heat dissiptions, no need to use radiator like normal LED screen.
◆Two installation applications which is fixed and rental installations.
Warranty of our products:
Tentech provides an excellent after-sales service on the prerequisite of customer satisfaction.
■ All the products owners purchased from Tentech possess the following rights:
□ Unconditional replacement within 7 days.
□ 2 Years warranty for maintenance.
■The repaired products will be back at Tentech cost to customer within 7 days (from the date we receive the defective products at customers cost).
■100% authentic strict assessment for you to slect high visibility, quality, good service, 10 times refund in case of fake were found.
■ 12 hours after-sales service Tentech professional service team promises to resolve any problems related to the use, installation and configuration of the product within 12 hours.
■ 30 days price protection if the price of the products as what you purchased is getting lower within 30 days, Tentech will refund the price difference.
| Transparent LED Display Specification | |
Pixel Pitch | 3.91mm-7.81mm |
Pixel Density | 32768dots / sqm |
Color Configuration | 1R1G1B |
LED Package | SMD2121 |

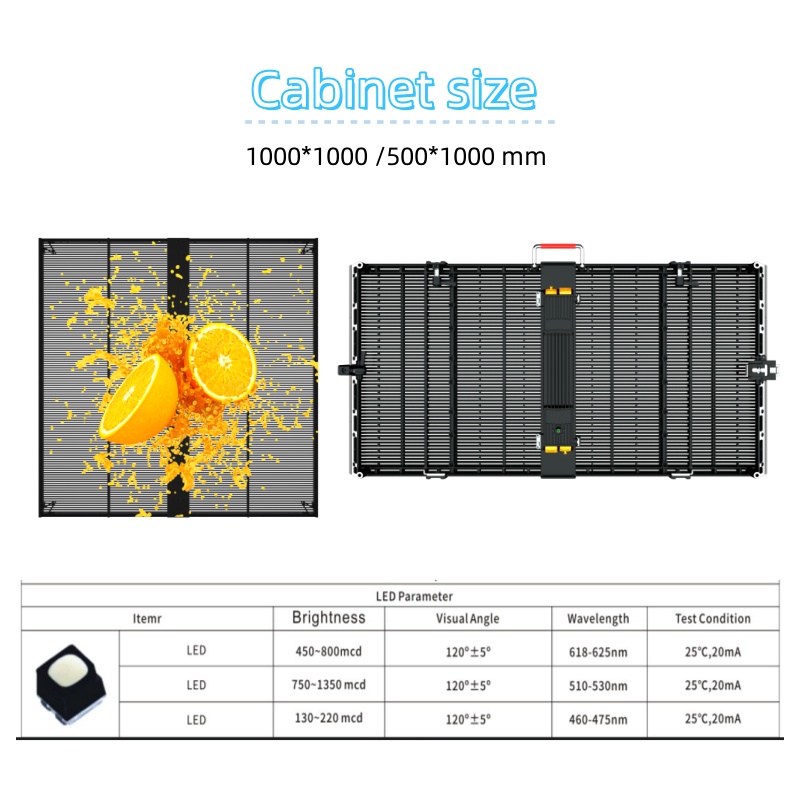

Module Size | 500mm x 250mm |
Drive Mode | 1/7 Scan |
Standard Cabinet Size | 1000mm x 500mm |
Cabinet Weight | 7KG |
Brightness | 1000 - 4200nits |
Viewing Distance | 4m-50m |
Viewing Angle | H: 120 °; V: 120 ° |
Refresh Rate | 1920 - 3840HZ |
Frame Rate | 120frame / sec |
Gray Scale | 16.7M colors (Synchronized) |
Color Temperature | RGB brightness 256 level adjustable |
Power Input | AC110V / 220V ± 10, 50HZ |
Max Power Consumption | 500W / sqm |
Ave. Power Consumption | 200W / sqm |
Storage Temperature | -30 ~ + 70 degree |
Working Temperature | -20 ~ + 50 degree |
Blind Spot Rate | <1/10000 |
MTBF | > 10,000 Hours |
Life Span | > 100,000 Hours |
Waterproof | Front: IP65 Rear: IP54 |
Operating Humidity | 10% ~ 95% |
Control PC | With DVI Graphic card |
Control Method | LINSN, NOVASTAR, COLORLIGHT |
Operating System | Win 98, Win2000, XP, Win7, Win8, Win10 |
Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
Certificate | CE, RoHS |
